Subsapces (en)

Tags: math


Start with useful definition: Non-zero vectors \(u, v \in \mathbb{R}\) call collinear vectors, if they are proportional to each other, that is exist \(\lambda \in \mathbb{R}\), that \(u = \lambda v\). Collinear vectors denoted as \(u || v\). Zero-vector collinear with any vector. Geometrically, vectors collinear, if they have same or opposite direction.

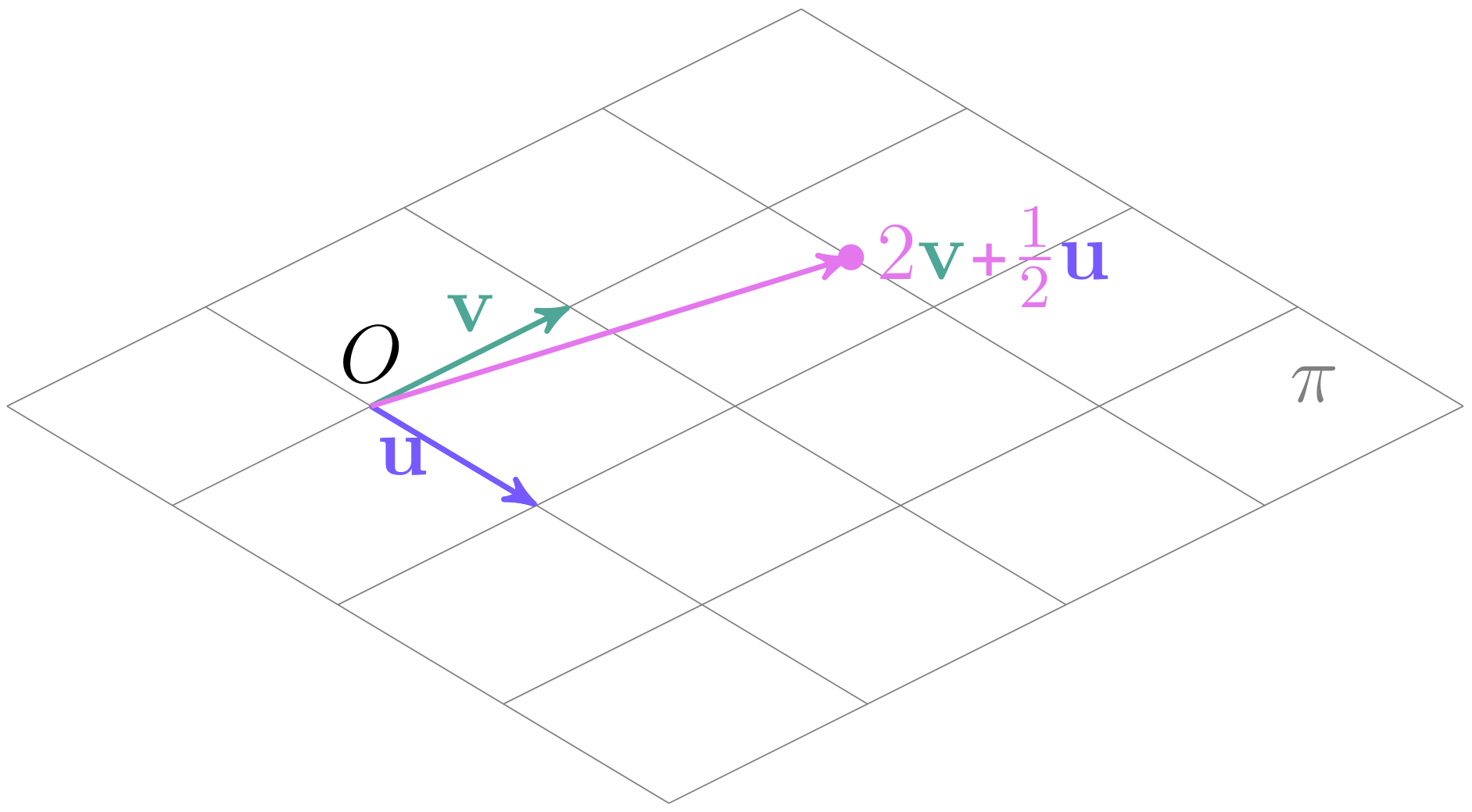

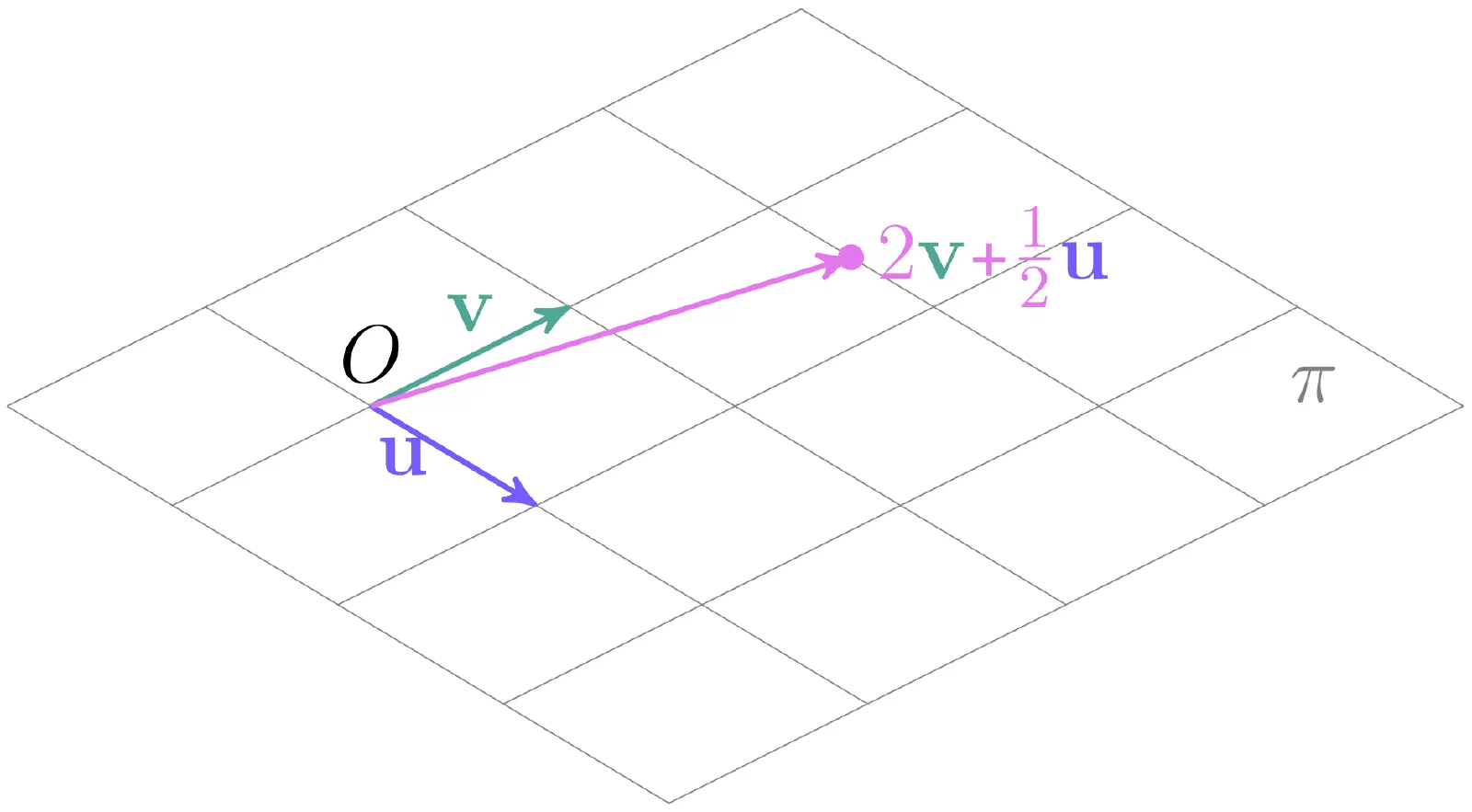

Let’s consider the plane \(\pi\) in \(\mathbb{R}^3\) space, which passes through zero-coordinate. Consider two non-collinear vectors \(u\) an \(v\) from this plane. Then, any point \(x \in \pi\) we can be represented as: \(x = \alpha u + \beta v\).

Illustration for Subsapces Okay, it’s mean we can define plane \(\pi\) as:

\[ \pi = \{\text{all vectors }\ x \ \text { represented as }\ x = \alpha u + \beta v\} \]

Let’s generalize the concept of a plane passing through the origin to a space of arbitrary dimension: The linear Span of vectors \(v_1, v_2, \dots, v_k \ \in \ \mathbb{R}^n\) is called set of vectors, represented in form of sum of vectors \(v_1, v_2, \dots, v_k\) with arbitrary ratio:

\[ P = \text{span}{(v_1, v_2, \dots, v_k)} = \{ x: \ x = \alpha_1 v_1 + \alpha_2 v_2 + \dots + \alpha_k v_k, \ \alpha_i \in \mathbb{R} \}. \]

Expression \(\alpha_1 v_1 + \alpha_2 v_2 + \dots + \alpha_k v_k\) will call linear combination of vectors \(v_1, v_2, \dots, v_k\).

Let’s final this with pivotal definition: linear subspace \(\mathbb{R}^n\) called span of finite numbers of vectors \(v_1, v_2, \dots v_k \ \in \mathbb{R}^n\):

\[ V = \text{span}(v_1, v_2, \dots, v_k) \]

The span concept and subspace concept equivalents. And any span and subspace contain a \(0\), because we can make all ratio \(\alpha_1, \alpha_2, \dots, \alpha_k\) equal to zero .

Why linear subspace is important? Here is an example:

Let us take a black-and-white digital photograph of size 512 by 512 pixels. In computer memory, this photograph can be represented as \(512 \times 512 = 262144\) numbers — each representing the intensity of the corresponding pixel, ranging from 0 (completely black) to 1 (completely white). Thus, the photograph can be represented as a vector \(x\) in a space of dimension \(d=262144\).

Now, let us consider an important practical problem — compressing the photograph without significant loss. It turns out that this problem can be solved by finding a special low-dimensional subspace and projecting the vector \(x\) onto this subspace.

We told, that subspace need to contain zero. It’s mean line \(y = 2x\) is a subspace, but line \(y = x + 2\) not. But many properties of subspace saved when it doesn’t contain zero. Therefore, we call such subspaces as affine subspaces. Affine subspaces of \(\mathbb{R}^n\) is a set of vectors \(A\) of the form \(a + v\), where \(a \in \mathbb{R}^n\) — is a fixed vector, and vector \(v\) belongs to linear subspace \(V\). Let linear subspace \(V\) is span of vectors \(v_1, v_2, \dots, v_k\). Then, affine affine subspace is a set:

\[ A = \{ x: \ x = a + \alpha_1 v_1 + \alpha_2 v_2 + \dots + \alpha_k v_k, \ \alpha_i \in \mathbb{R}\} \]

Let \(V\) — subspace in \(\mathbb{R}^n\). Dimension of this subspace is minimal count of vectors \(v_1, v_2, \dots, v_k \in \mathbb{R}^n\) for define subspace \(V\):

\[ V = \text{span}(v_1, v_2, \dots, v_k). \]

Dimension is denoted by: \(\dim{(V)}\). Let’s think about it. For example, we have two non-collinear vectors \(u, v \in \mathbb{R}^{100}\) and subspace \(V = \text{span}(u, v)\). We know every vector \(x \in V\) have 100 coordinates, but, by subspace definition: \(x = \alpha u + \beta v\). it’s mean any vector \(x\) defined only two parameters \(\alpha\) and \(\beta\), therefore \(\dim{(V))} = 2\). For define point in \(\mathbb{R}^n\) we need \(n\) parameters, for define point in \(V\) we need \(\dim{(V)}\) parameters.

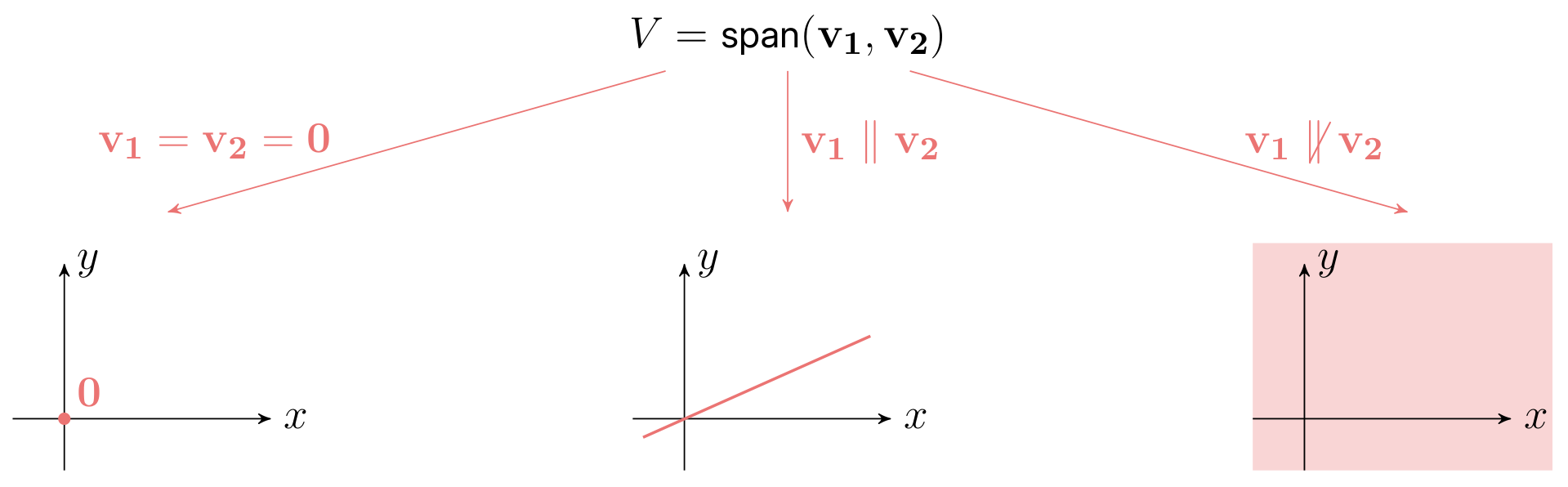

Illustration for Subsapces

Exist subspace, which defined only one vector \(0\): \(V = \text{span}(0)\). We call this subspace trivial, and considered \(\dim{(V)} = 0\).

If we have subspace \(V = \text{span}(v_1, v_2, \dots, v_k)\), when \(\dim{(V)}\) can be smaller than \(k\)? if and only if one of the vectors can be express as linear combination rest vectors, for example: \(v_1 = \gamma_2v_2 + \gamma_3v_3 + \dots + \gamma_kv_k\).

Set of vectors called linearly independent if equality:

\[ \alpha_1 v_1 + \alpha_2 v_2 + \dots + \alpha_k v_k = 0 \]

holds only for \(\alpha_1 = \alpha_2 = \dots = \alpha_k = 0\). If equality can be holds for non-zero rates, vectors linearly dependent.

Consider space \(\mathbb{R}^n\) and a given non-zero vector \(w \in \mathbb{R}^n\) . Then set of vectors \(P\), perpendicular \(w\):

\[ P = \{ \ x: \langle x;w \rangle = 0\ \} \]

is linear subspace with \(\dim{(P)} = n - 1\)
