Base of multivariate vectors (en)

Tags: math


What is a vector? For natural number \(n\) will call a n-variate vector list of n ordered real numbers \(v = \begin{pmatrix}v_1&v_2&v_3&\ldots&v_n\end{pmatrix}\). Well the \(n\) number is a vector dimension: \(\dim{v} = n\). For \(n\) number the set of all possible vectors will call \(R^n\). The regular number we call “scalar”. For example, \(5 \ - \ scalar\), but \(\begin{pmatrix}1&3\end{pmatrix} \ - \ vector\).

# The basic operations of vectors

  1. Sum of vectors is a sum of corresponding coordinates:
    \[ v + w = \begin{pmatrix}v_1 \\ v_2 \\ \ldots \\ v_n \end{pmatrix} + \begin{pmatrix}w_1 \\ w_2 \\ \ldots \\ w_n \end{pmatrix} = \begin{pmatrix}v_1 + w_1 \\ v_2 + w_2 \\ \ldots \\ v_n + w_n \end{pmatrix} \]

We can add vectors only they have same dimension. 2. Product of vector by scalar is a product off each coordinates by a scalar:

\[ \lambda v = \lambda \cdot \begin{pmatrix}v_1 \\ v_2 \\ \ldots \\ v_n \end{pmatrix} = \begin{pmatrix}\lambda v_1 \\ \lambda v_2 \\ \ldots \\ \lambda v_n \end{pmatrix} \]

3. Difference of vectors is a sum of vectors, but one of vector product by scalar \(-1\). 4. Scalar product of vectors:

\[ x \cdot y = \langle x;y\rangle = x_1 y_1 + x_2 y_2 + \ldots + x_n y_n = \sum \limits_{i = 1}^{n}x_i y_i \]

Properties of scalar vectors product:

  • Commutativity: \(\langle v; w\rangle = \langle w; v\rangle\)
  • Distributivity over addition: \(\langle x; (v + w)\rangle = \langle x; v\rangle + \langle x; w \rangle\)
  • Compatibility with scalar multiplication: \(\langle v; \lambda w\rangle = \lambda \langle v;w\rangle\)
  • If scalar product equal zero we call this two vectors orthogonal or perpendicular

# Geometric meaning

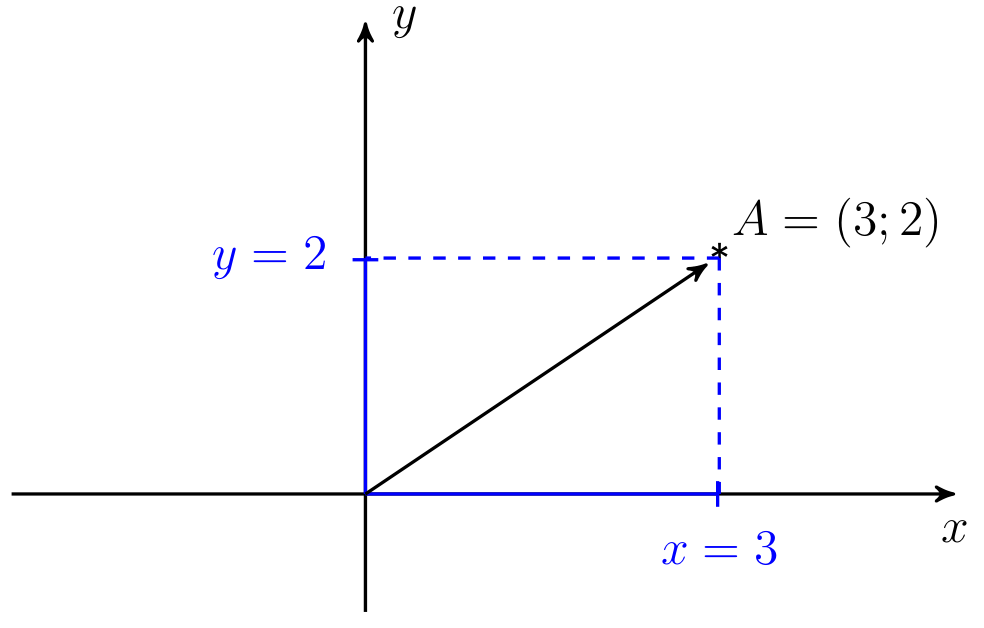

In geometry vector is a segment having a direction. Illustration for Base of multivariate vectors

The length of vector we calculate with Pythagoras’s theorem: \(||v|| = \sqrt{\sum\limits_{i = 1}^{n}{x_i}}\). If length of vector equal one we call it a unit vector. If \(v\) not a unit vector we can change it multiplying by \(\lambda = \frac{1}{||v||}\). We can calculate distance and angle between two vectors. Distance is a length of difference two vectors: \(d = ||v - w|| = \sqrt{\sum\limits_{i = 1}^{n}{(v_i - w_i)^2}}\). Angle between two vectors follows from Law of Cosines:

\[ \cos{\theta} = \frac{\langle u;b \rangle}{||u||\ ||v||} \]

Often be helpful: \(||u|| = \sqrt{\langle u;u\rangle}\). Next operation is projection vector \(u\) to vector \(w\):

\[ Proj_w(u) = \frac{\langle u;w\rangle}{||w||^2}w \]

Another property of vectors: module of scalar product does not exceed product of their length — the Cauchy–Schwarz inequality:

\[ -||v||\ ||w|| \leqslant \langle v;w\rangle \leqslant ||v||\ ||w|| \]

The Triangle inequality: \(||v + w|| \leqslant ||v|| + ||w||\), so length of sum of vectors less than or equal to sum of vectors lengths. If vectors is orthogonal, work the Pythagoras’s theorem: \(||a + b||^2 = ||a||^2 + ||b||^2\).
